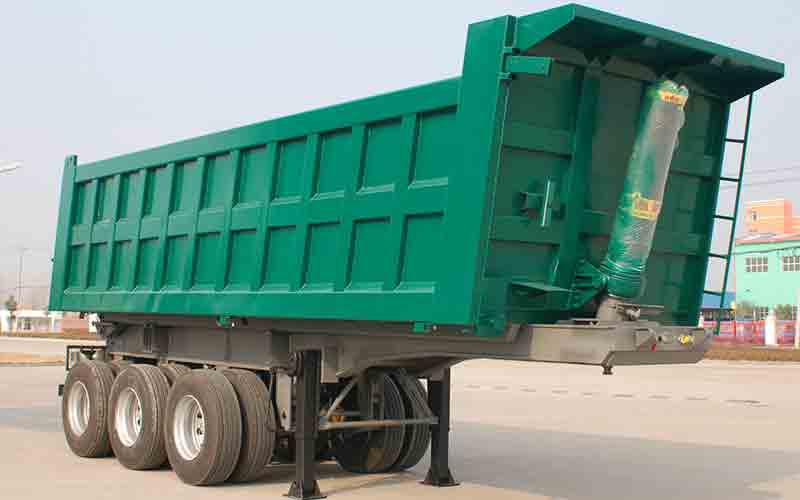

Tri-axle 30M3 tipper semi trailer
Country of origin: China
Min. Order: 1 Piece
Payment Terms: L/C, T/T
Hot line: +86-18665921217
| DIMENSIONS | |||||
| Tare Weight | 11000kgs | ||||
| Payload | 50000KGS to 60000KGS | ||||
| Overall Length | 11800mm | ||||
| Overall Width | 2465mm | ||||
| Dump body size | 11000mmx2300mmx1200mm | ||||
| Photo for reference, final produce can be made according to exact requirements | |||||
| DUMPER BODY | |||||
| Volume | 30 cbm (18CBM,32CBM 40CBM are optional ) | ||||
| Side Wall | 6mm thickness, Q345B High tensile strength steel. | ||||
| Front Wall and floor | 8mm thickness, Q345B High tensile strength steel. | ||||
| SPECIFICATION | |||||
| Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Double Middle Flange 6mm and 8mm ; Bottom Flange 16mm,width 140mm. | ||||
| Axle | 3 axles | ||||
| FUWA Brand 13 ton. BPW brand is optional. | |||||
| Hydraulic System | One set of HYVA Brand cylinder | ||||
| Suspension | German design mechanical suspension | ||||
| Leaf Spring | 13-piece leaf spring. 11×100 | ||||
| King Pin | JOST brand 2” Bolt-in King Pin | ||||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | ||||
| Wheel Rim | 8.25-22.5 wheel rim, 13 pieces | ||||
| Tyre | 11R22.5 tubeless tire with one spare tire, 13 pieces | ||||
| Spare Tire | One set of spare tire including a carrier | ||||
| Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | ||||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint | ||||
| Accessories | One standard tool box | ||||
