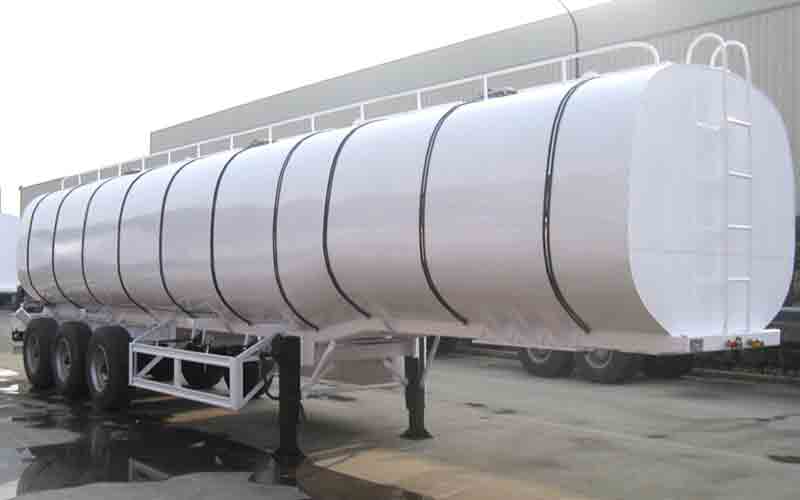

Three-axle 38m3 Asphalt transport Tank Semi-Trailer
Country of origin: China
Min. Order: 1 Piece
Payment Terms: L/C, T/T
Hot line: +86-18665921217
| Technical Data | ||||||
| Weight Rating (kgs) | Tare Weight | 11000 kg | ||||
| Pay Load | 45000 kg | |||||
| Dimension （㎜） |
Trailer | Overall Length | 13000 | |||
| Overall Width | 2500 | |||||
| Overall Height | 3700 | |||||
| Wheelbase | 6910+1310+1310 (mm) | |||||
| Tank | ||||||
| Shape | Ellipse | |||||
| Total Volume（m3） | 38 | |||||
| Valid Volume（m3） | 36.5 | |||||
| Drift Diameter（inch） | System | 4 | ||||
| Outlet | 3 | |||||
| Material | Q235A/6mm | |||||
| End plate | Q235A/6mm, by punching | |||||
| Spurn water | Q235A/5mm, 20 inch manhole 508MM | |||||
| Parts for Tank | ||||||
| Manhole cover | 3 sets of 500mm/Q235 manhole fixed on top of Tank, with breather valve | |||||
| Unloading valve | 2 sets of DN80 fixed at button of Tank | |||||
| Pipeline at button of tank | 4”seamless steel tube/Q235 100MM | |||||
| Labeling system | Oil Type Indication | |||||
| Anti-static electricity system | pulling, wire carrier, sheet copper (6 sheet, reasonable layout) | |||||
| Other Parts | ||||||
| Ladder | 1 unit at front of Tank | |||||
| Guard on top of Tank | Zinc galvanizing net | |||||
| Oil hose box | Circular single hole tube, 1 unit on each side | |||||
| Oil hose | 2 unit, 3” x 6mm size in black rubber | |||||
| Side guard | cross bar structure | |||||
| Rear button guard | Fixed type | |||||
| Work tank deck | Box type | |||||
| Fire extinguisher box | 2 unit at back of each side | |||||
| Mud guard | trapezoid structure in steel | |||||
| Lights and wire | 24V, 7 coils with lights for parking, reverse, instruction, head lamp and end lamp | |||||
| Chassis | ||||||
| Main Beams | Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes | |||||
| Axle | Three units of BPW 13 ton axle, FUWA, L1 brand are optional. | |||||
| Landing Gear | 28T, 19” ,JOST Two Speed Manual Operation | |||||
| King Pin | One unit of 2” bolt-in king pin | |||||
| Suspension | German style mechanical tandem suspension with 11mm x 100mm 13 leaf springs | |||||
| Pneumatic Braking System | One units of WABCO RE 6 relay valve; four units of T30/30 chamber; one units of reliable local brand 40L air tank ; two units of reliable local brand standard coppery air-connector. | |||||
| Wheel rim | 8.25-22.5 rim, 9 pieces including one spare | |||||
| Tire | 11R22.5 tubeless tire, 9 pieces including one spare | |||||
| Painting | Sand blasting processing clean rust One coats of anticorrosive Two coats of finish urethane paint Colour as customer choice |
|||||
