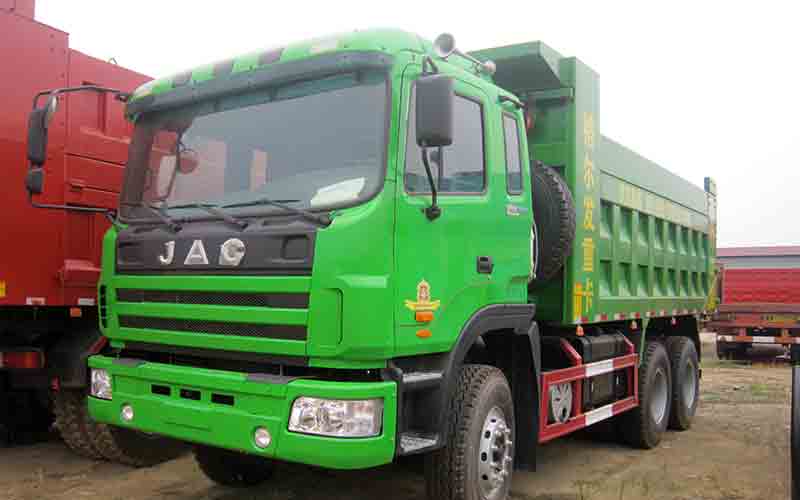

JAC 6X4 Tipper Truck
Country of origin: China
Min. Order: 1 Piece
Payment Terms: L/C, T/T
Hot line: +86-18665921217
| JAC 6X4 Tipper Truck | |||
| Dimension(mm) | |||
| Overall | 8285x2495x3200mm | ||
| F/R Suspension | 1495/1555 | ||
| F/R Track | 2040/1850,1850 | ||
| Wheelbase | 3690+1350 | ||
| Engine | |||
| Model | WP10.310E32 | Power | 310hp/2200rpm |
| Emission | 9726ml, EU III | Max torque | 1350N·m/1200-1600rpm |
| Engine detail | 6 cylinder, four stroke,water cooling, inter cooling turbocharger, egr | ||
| Transmission | 10 forward , Fast brand | ||
| Tire | 12.00R20, radial tire, 10pcs, 1 spare | ||
| Cab | 2 passenger with 1 sleeper, single and half, flat roof, | ||
| Air conditioner, electric window, shock absorber seat, tachograph, air horn | |||
| Drive type | 6×4, left hand drive, power steering | ||
| Max speed | 90km/h | ||
| Suspension | Non-independent suspension, steel leaf spring | ||
| Rear axle loading ability | 13ton, double rear axle, cast steel axle | ||
| Brake | Air brake , EVB, ABS | ||
| Cargo box inner size(LxWxH) | 5.4×2.3×1.6m | ||
| Cargo volume | 20cbm | ||
| Cargo board material | 16Mn high intensity steel | ||
| Cargo thickness | Side board 6mm, bottom 8mm | ||
| Dumping type | Front hydraulic tipping | ||
