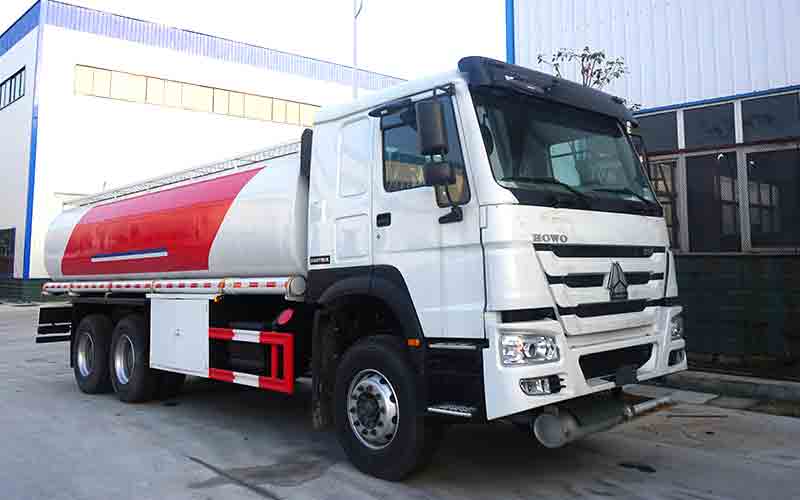

Howo 6×4 Fuel Tank Truck-25m3
Country of origin: China
Min. Order: 1 Piece
Payment Terms: L/C, T/T
Hot line: +86-18665921217
| Truck Specification | |||
| Chassis model | Howo | ||
| Cab | Howo single row cab, with power steering. Electronic flameout,without a/c | ||
| Driving Type | 6*4 Left hand driving | ||
| Max Speed (km/h) | 110 | ||
| Overall dimension(mm) | 10000*2496*3405 | ||
| GVW( kg) | 25000 | ||
| Mass in working order ( kg) | 9800 | ||
| Tank Capacity (L) | 20000 | ||
| Wheelbase(mm) | 1350+4600 | ||
| F/R track base (mm) | 2015/1830 | ||
| F/R overhang (mm) | 1430/2620 | ||
| Approach/Departure Angel | 19/12 | ||
| Tire | 12.00-22.5 (10+1) | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Gear box | 10-speed | ||
| Bridge | Front axle | 7.0T | |
| Rear axle | 11.0T | ||
| Engine | Model | MC07.24 | |
| Fuel Type | Diesel fuel | ||
| Type | Water-cooled four-stroke,, direct injection, turbocharged | ||
| Exhaust(ml) | 6870 | ||
| Max output power/rotate speed (hp /rpm ) | 240 | ||
| Max torque/rotate speed(N.m/rpm) | 6870L | ||
| Braking system | Service Brake | Compressed air brake | |
| Park Brake | Spring energy | ||
| Auxiliary brake | engine exhaust brake | ||
| Eletric system | 24v | ||
| Upper-Body specification | |||
| Volume of tank | 25m3 | ||
| Tank shape | oval | ||
| Material of tanker | carbon steel | ||
| Color of the tanker | According your demands | ||
| Equipment | Oil pump | ||
| Transport medium | Diesel oil, gasoil or others | ||
