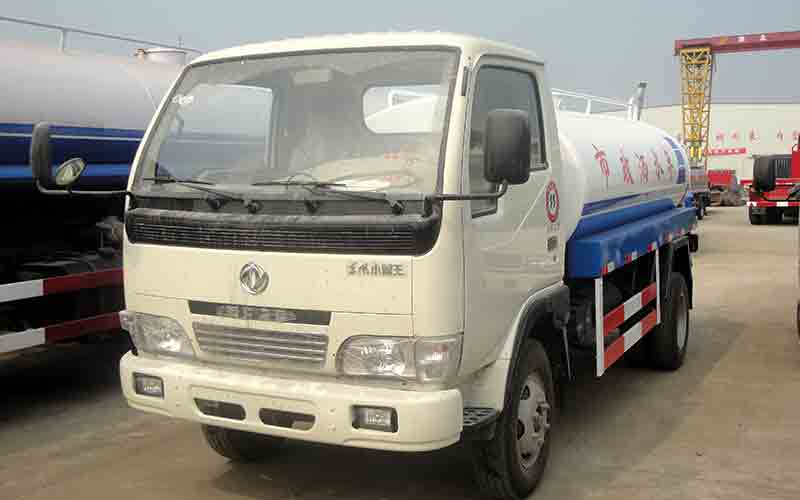

Dongfeng 4X2 Water Tank Truck 5000L
Country of origin: China
Min. Order: 1 Piece
Payment Terms: L/C, T/T
Hot line: +86-18665921217
| Dongfeng 4X2 Water Tank Truck 5000L | ||
| Vehicle Main Dimensions | Dimensions(L x W x H)(mm) | 5995×2000×2300 |
| Wheel base (mm) | 3300 | |
| Overhang (front/rear) (mm) | 1032/1663 | |
| Wheel track (front/rear) (mm) | 1506/1466 | |
| Approach/Departure angle(°) | 15/16 | |
| Weight in KGS | Curb Weight | 2870 |
| GVW. | 4495 | |
| Max. driving speed(km/h) | 95 | |
| Engine | Model | CY4102- |
| Horse Power(HP) | 95HP | |
| engine capacity(ml) | 3856 | |
| Gearbox | 5 forwards & 1 reverse | |
| Clutch | Reinforced diaphragm clutch | |
| Steering Gear | Power steering, hydraulic steering with power assistance | |
| Tire | 7.00R16,7.00-16, 6 + 1(spare) | |
| Brakes | dual circuit compressed air brake | |
| Tank | ||
| Material | Q235A Carbon steel | |
| Medium | Water | |
| Loading Capacity | 5000L | |
| Thickness(mm) | 5 | |
| Standard
Equipment
|
1.Equipped with front,rear,side sprinkler (sprinkling width>14m )
2.Equipped with rear working platform with water cannon which can be turned all-round (range>28m),can be adjusted into flinging, heavy rain,light rain, drizzle model, with security barrier. 3.Equipped with CLW pump(suction lift>6m) 4.Equipped with fire valve, water valve, and filter gauze |
|
