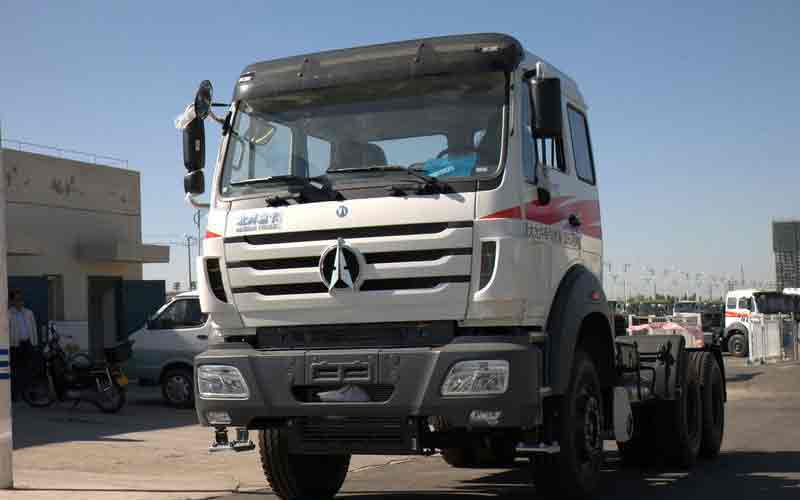

Beiben 6×4 Tractor
Country of origin: China
Min. Order: 1 Piece
Payment Terms: L/C, T/T
Hot line: +86-18665921217
| Beiben 6X4 Tractor Truck | |||
| Weight Parameter | Complete Vehicle Kerb Mass(kg) | 9200 | |
| Maximum authorized total mass (kg) | 39600 | ||
| Dimension Parameter | External
Dimensions(mm) |
Length (mm) | 7135 |
| Width(mm) | 2495 | ||
| Height(mm) | 3100 | ||
| wheelbase(mm) | 3450+1450 | ||
| Performance
Parameter |
Maximum Speed(km/h) | 90 | |
| Maximum Grade ability(%) | 35 | ||
| Turning diameter(m) | 20 | ||
| Recommended Configuration | Engine | Engine Type | WP10.380E32 |
| Rated power
(kW)/Rev(r/min) |
280/2200 | ||
| Horse power | 380HP | ||
| Transmission | 12JS200T | ||
| gearbox | 12 forward gears
2 reverse gears |
||
| Clutch(mm) | Φ430 | ||
| Axle | Front Axle | BENZ AXLE | |
| Rear Axle | BENZ AXLE | ||
| Axle load-bearing | Front axle(kg) | 7500 | |
| Front axle(kg) | 18000 | ||
| Fuel Tank(L) | 400 | ||
| Track(mm) | 1995/1800/1800 | ||
| Front overhang/rear overhang(mm) | 1410/825 | ||
| Tyre | 12.00R20 | ||
