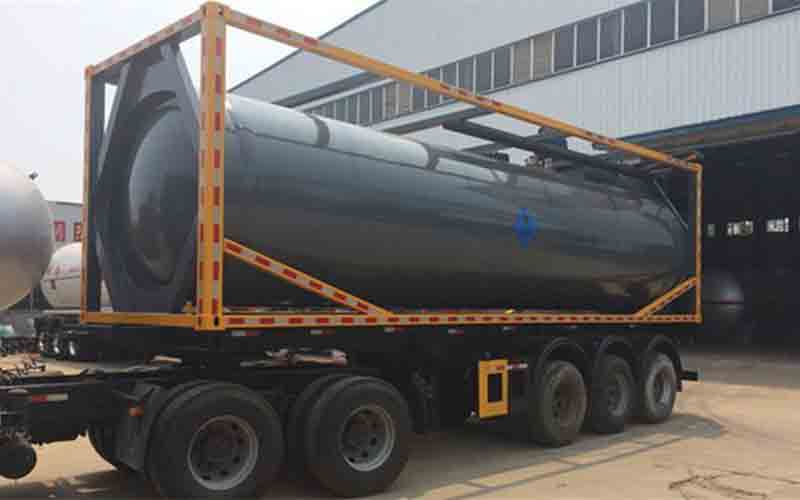

40ft ISO LPG tank container
Country of origin: China
Min. Order: 1 Piece
Payment Terms: L/C, T/T
Hot line: +86-18665921217
| Item | Unit | Parameter |
| Product Name | Liquefied Gas 40ft Tank Container | |
| Manufacturer Name | ChengLi Special Automobile Co., Ltd | |
| Overall dimensions | mm | 12192*2438*2591 |
| Tank Dimension | DN2300*14*12192(inner dia*thickness*length) | |
| Fact cubic meters | cbm | 52 |
| Total Mass in working order | kg | 30000kg |
| Working pressure | Mpa | ≤1.6 |
| Testing hydraulic pressure | 2.22 | |
| Testing pressure for gas density | 1.77 | |
| Working temperature | ℃ | ≤50 |
| Frame Material | Carbon Steel Q345R | |
| Other | Tank material: 16Mn,Q345R, 14mm thickness; seal cover: 14mm thickness; pressure relief valve model: A42F-2.5-80, open pressure: 1.68-1.76Mpa; LPG density: 0.42t/m3 for propane. Mark dangerous caution on tank. | |
Safety accessory:
| Model Number | Quantity | |
| Tank | 52 CBM | |
| Cut-off Valve | DN50 | 6 Pieces |
| Cut-off Valve | DN25 | 2 Pieces |
| Cut-off Valve | DN80 | 1 Pieces |
| Needle Valve | J24W, M20×1.5 | 1 Pieces |
| Safety Valve | DN80 | 1 Pieces |
| Magnetic reversible level gauge | UZFAL-2.5RF2640-0.50 | 1 Pieces |
| Pressure gauge | M20×1.5 1.5Level 0～4MPA | 1 Pieces |
| Thermometer | M33×2 2.5Level | 1 Pieces |
