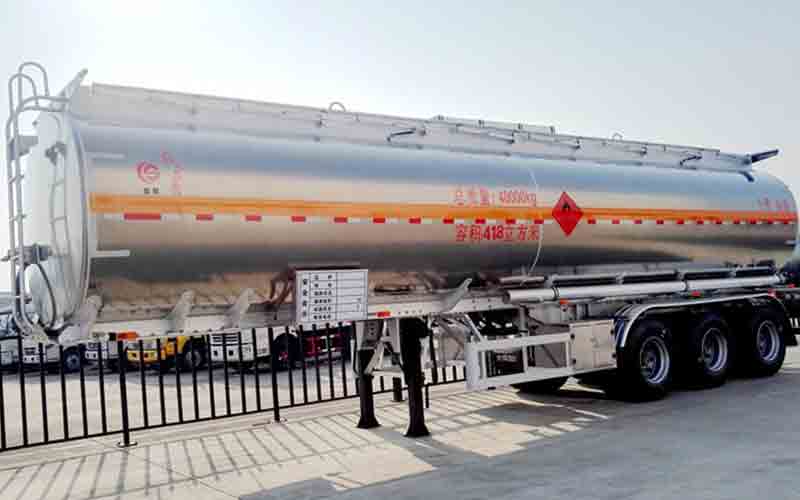

3 axle aluminum alloy 42000Liters fuel tank trailer
Country of origin: China
Min. Order: 1 Piece
Payment Terms: L/C, T/T
Hot line: +86-18665921217
| Main Dimensions | ||||
| Overall Length | 11800mm | |||
| Overall Width | 2500mm | |||
| Overall Height | 3600mm | |||
| Tare Weight | Approximate 6500KGS | |||
| Loading Capacity | 42m3 | |||
| Tank Body | ||||
| Shape | Mono block Cylinder | |||
| Total Volume（m3） | 42CBM | |||
| Tanker Body Material | 5mm Aluminum Alloy ASTM B-209 5454/H32(shiny aluminum sheet) | |||
| End plate | 5mm Aluminium Alloy ASTM B-209 5454/H32(shiny aluminum sheet) | |||
| Lifting Ladder | Including Top walkway and backside Aluminum material | |||
| Manhole cover | Aluminum alloy API manhole cover with oil and gas recovery system , ∮500mm ,2 sets with 2 breather valves. | |||
| Bottom Valve | 1 sets of Pneumatic Bottom Valve,Pneumatic control | |||
| Discharging valve | 1 set ∮100mm discharging valves, API standard | |||
| No.of Compartment | 1 | |||
| Discharging Pipe | 4”rubber hose, 2 pc, 6m long | |||
| Trailer | ||||
| Main Beams | Special design I beam, Aluminum Saddle support 7 No’s each side. | |||
| Axle | 3 axles | |||
| BPW 13 Ton | ||||
| Landing Gear | JOST brand C200,Two-speed, manual operating, heavy duty landing gear | |||
| King Pin | JOST brand 2” bolt-in king pin | |||
| Suspension | Full set of BPW brand Air bag suspension | |||
| Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. | |||
| Wheel rim | 11.75-22.5 Aluminum Alloy rim, Taiwan FCT brand,7 pieces including one spare | |||
| Tire | 385/65R22.5 tubeless tire with one spare tire, 7 pieces, Triangle Brand | |||
| ABS System | Fitted with 4s/2m Type (WABCO ,German brand) | |||
| Other Design and parts | 1.Vapor recovery system. 2.Dust Board to Cover the Tires 3.Rear and side lights. 4.Rear Ladder to access the top of the tanker. 5.Aluminum Crown to whole length of Tank. 6.Walkway with foldable handrail. (air operated) 7.Tool Box 120cm (Without Tools). 8.Double Spare Tire Carrier (Winch Type). 9.Water tank, European type. 10. 4 No’s of fire extinguisher holder. 11. 2 No’s of Manhole 12. Overfill prevention sensor/Overfill prevention socket. 13. Vapor adapter/Vapor vent valve/API loading and unloading valve |
|||
