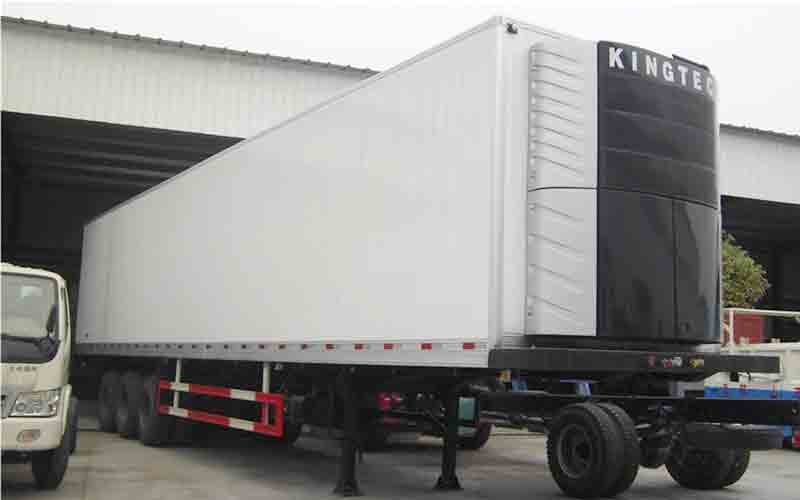

3 Axle 40T Refrigerator Semi Trailer
Country of origin: China
Min. Order: 1 Piece
Payment Terms: L/C, T/T
Hot line: +86-18665921217
| Tare Weight | 11000 kgs | |||
| Payload | 40000 kgs | |||
| Overall Length | 12500 mm | |||
| Overall Width | 2500 mm | |||
| Overall Height | 4000 mm | |||
| Photo for reference, final produce can be made according to exact requirements | ||||
| Refrigerator System | ||||
| Brand | Famous KINGTEC | |||
| Type | Independent, with Diesel Engine and Battery | |||
| Temperature | -18 Celsius degree | |||
| Refrigerator Box | ||||
| Material | GRP in the surface, Foam in the middle | |||
| Thickness | 100 mm | |||
| Box Size | 11700 *2300*2300 mm | |||
| SPECIFICATION | ||||
| Chassis | Heavy duty and extra durability designed I beam; high tensile steel Q345B for chassis and dumper body. Top Flange 14mm,width 140mm; Double Middle Flange 6mm and 8mm ; Bottom Flange 16mm,width 140mm. | |||
| Axle | 3 axles | |||
| Fuwa, 13 Ton | ||||
| Suspension | Heavy duty mechanical suspension | |||
| Leaf Spring | 10-piece leaf spring, 6 sets totally. | |||
| King Pin | JOST brand 2” Bolt-in King Pin | |||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |||
| Wheel Rim | 9.0-22.5 wheel rim, 12 pieces | |||
| Tyre | 12R22.5 tubeless tire , 12 pieces | |||
| Spare Tire | One set of spare tire including a carrier | |||
| Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks | |||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |||
| Accessories | One standard tool box | |||
